Linear Motion Mud Shale Shaker Ⅱ

The linear motion mud shale shaker is a first-stage equipment for solid-liquid separation of drilling fluid, and it is suitable for the drilling fluid return control system of oil and gas drilling.
Availability:
Quantity:
Linear Motion Mud Shale Shaker Ⅱ
Linear Motion Mud Shale Shaker Ⅱ
Linear Motion Mud Shale Shaker Ⅱ
Linear Motion Mud Shale Shaker Ⅱ
Linear Motion Mud Shale Shaker Ⅱ
Linear Motion Mud Shale Shaker Ⅱ

Product Description

The linear motion shale shaker is the first-level equipment for solid-liquid separation of drilling fluid, and is suitable for the drilling fluid solid control system in oil and gas drilling and production. The shaker uses two vibrating motors of equal mass and diameter. According to the self-synchronization principle, the screen box moves linearly in a certain direction to screen out and discharge the cuttings particles in the drilling fluid. >>Send an Enquiry sales@hlsolidscontrol.com<<

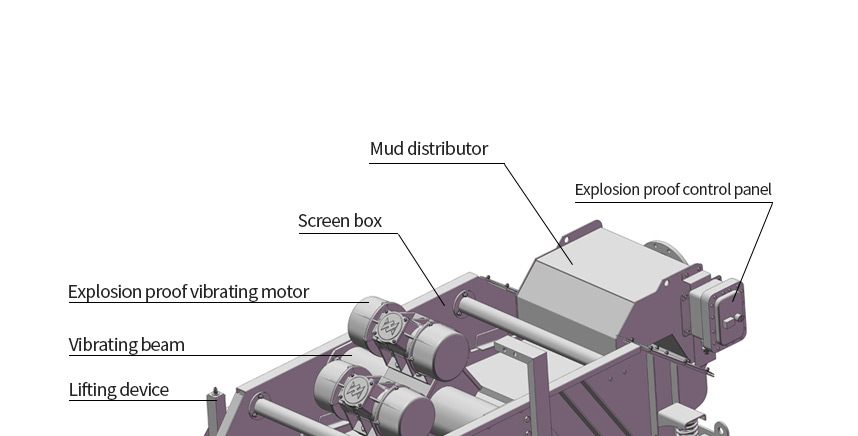

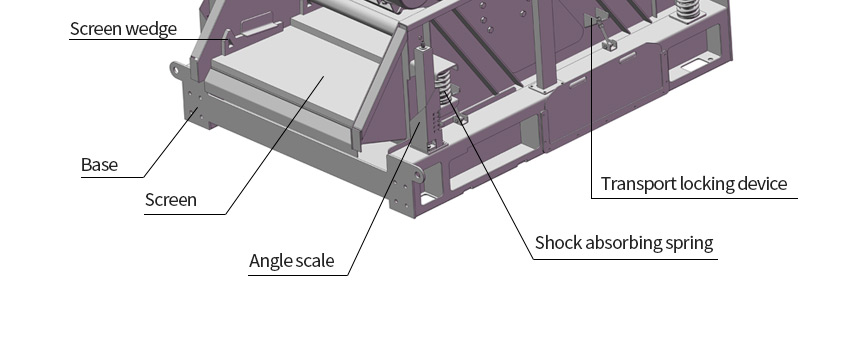

振动筛_01振动筛_02

Features of linear motion shale shaker

1. Steel plate welded shell explosion-proof control box, strong and durable, long life

2. Cylinder explosion-proof motor, good stability and high transmission performance

3. Ratchet inclination adjustment device, simple and easy to operate, good stability

4. Eccentric shaft triangular tensioning system (compression system), fast and convenient, strong and durable

5. Composite injection molding frame screen, strong and durable, good rigidity, service life is 3-5 times longer than ordinary screen, light and easy to replace

6. Stainless steel splash guard, clean and environmentally friendly, reducing pollution

TDS

Technical parameters of linear motion shale shaker >>Send an Enquiry sales@hlsolidscontrol.com<<

Model

HZS703

HZS803

HZS604

HZS605

Vibration Mode

Linear Motion

Linear Motion

Linear Motion

Linear Motion

Capacity

30L/S

35L/S

40L/S

45L/S

Screen Area

2.2㎡

2.7㎡

2.7㎡

3.4㎡

Screen Qty & Size

3×1050×700mm

3×1080×830mm

4×1165×585mm

5×1165×585mm

Motor Power

2×1.5kW

2×1.8kW

2×2.2kW

2×2.5kW

Deck Angle Range

-1°~3°

-1°~3°

-1°~3°

-1°~3°

Dimension: L×W×H

2850×1590×1550

3150×1800×1630

2650×1700×1750

2850×1750×1650mm

Weight

1680kg

1800kg

1950kg

2350kg

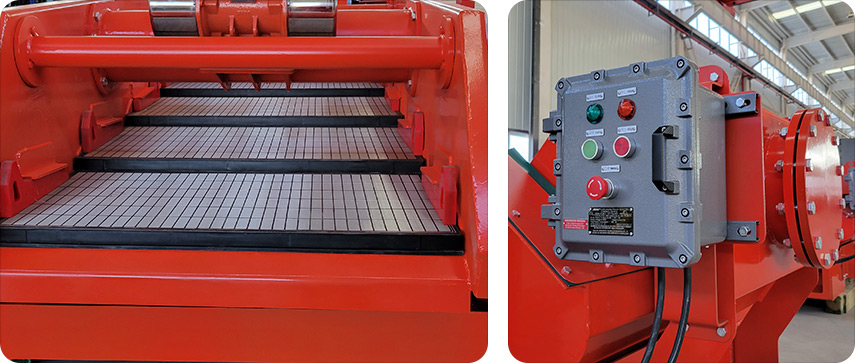

振动筛_03振动筛_04

A very important parameter of the mud shale shaker is its processing capacity. In addition to the selection of its own motion parameters, it is also affected by factors such as drilling fluid type, density, viscosity, size and amount of solid particles, and mesh size. Therefore, it should be considered and reasonably selected in actual use.

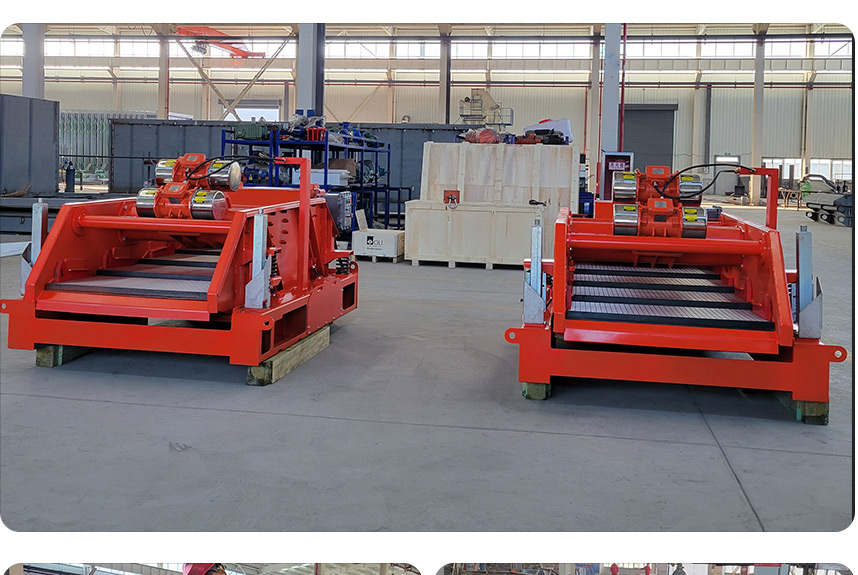

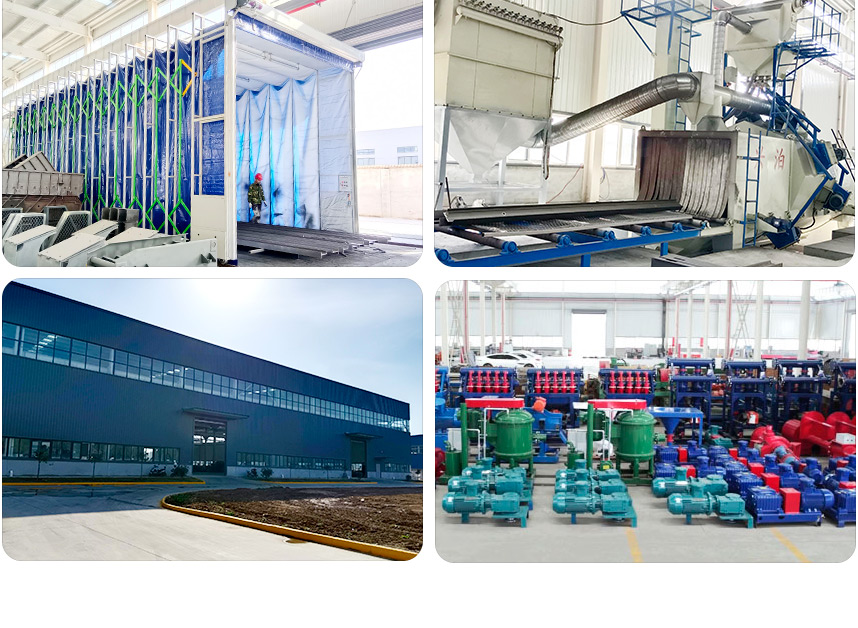

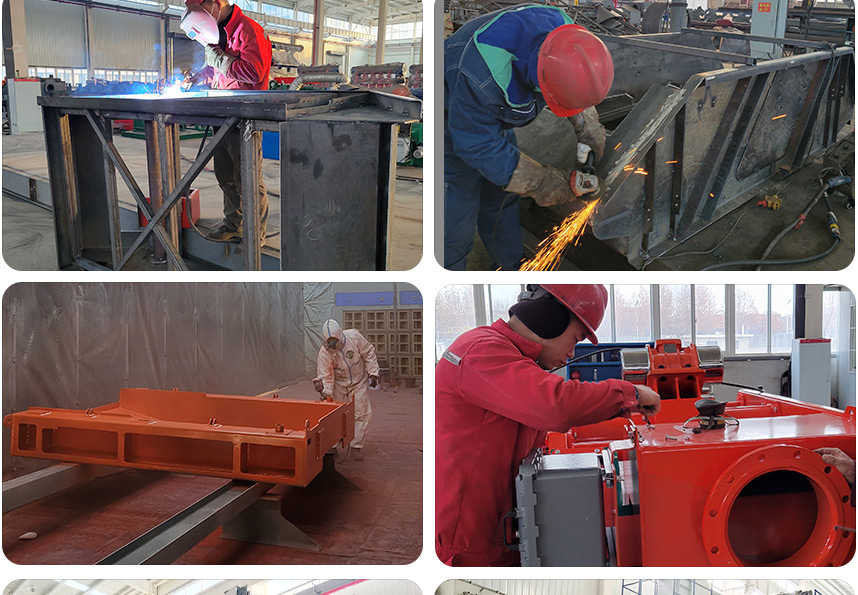

Processing Pictures

振动筛_05振动筛_06振动筛_07

Mud shale shaker operation manual HZS604.pdf
