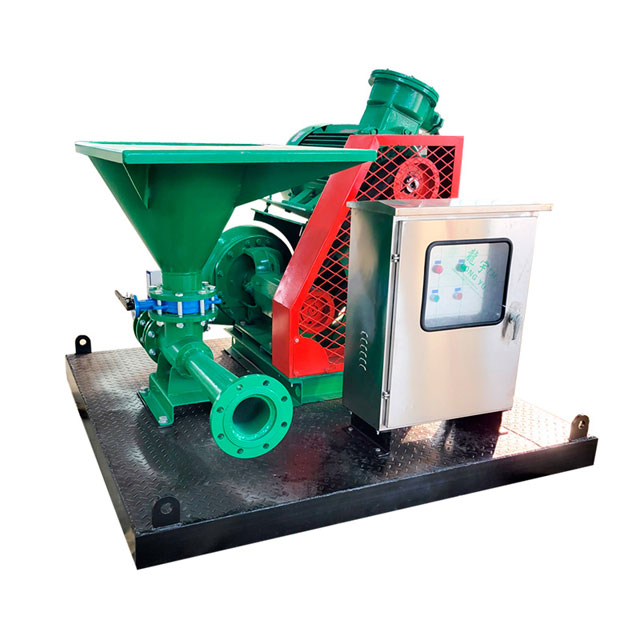

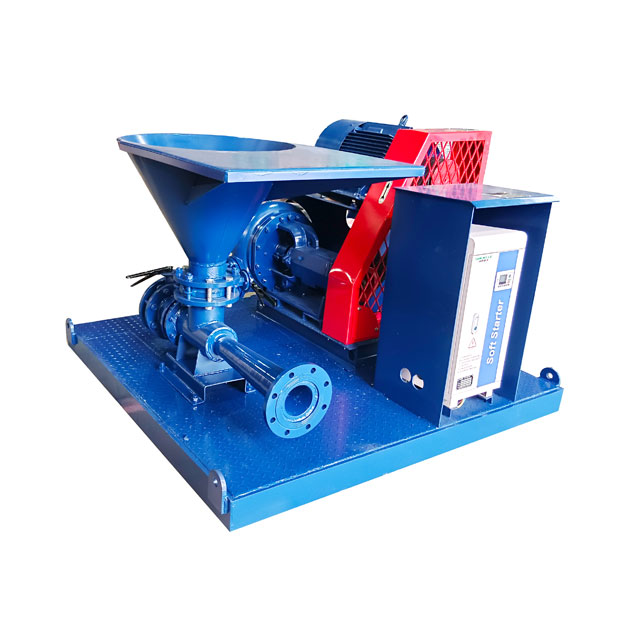

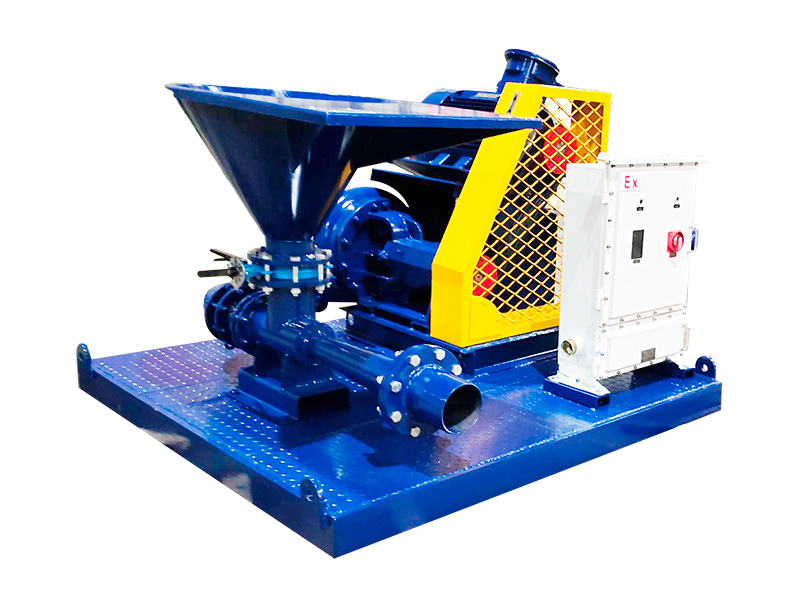

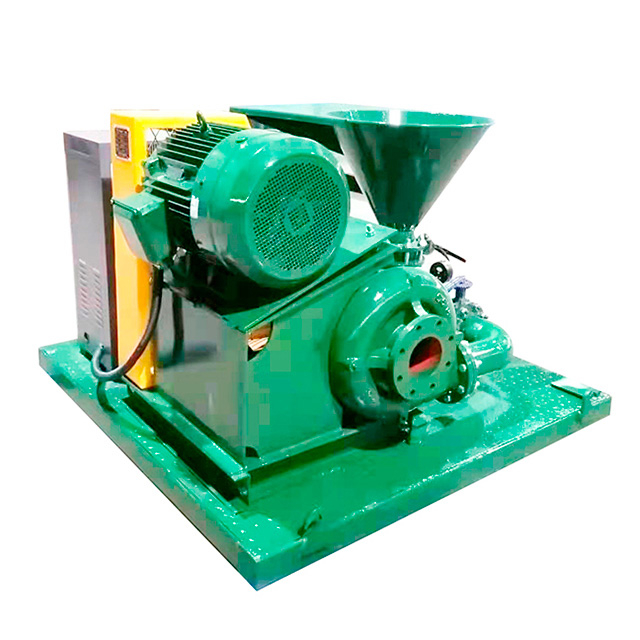

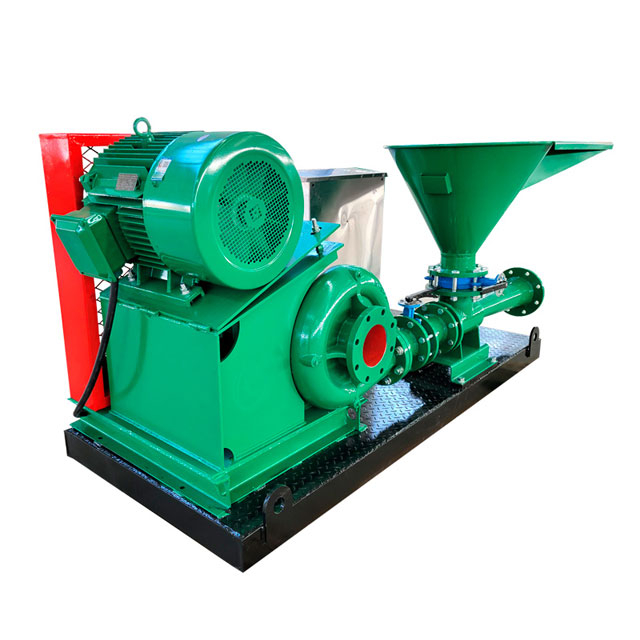

Jet Shear Mixer

This jet shear mixer is mainly composed of a shearing pump, a jet mixing hopper and manifold valves, and is equipped with a magnetic starter. The electric motors are all explosion-proof, explosion-proof grade is BT4, and the protection grade is IP55, stable performance, safe and reliable !
Availability:
Quantity:
Inquire

Jet Shear Mixer
Jet Shear Mixer
Jet Shear Mixer
Jet Shear Mixer
Jet Shear Mixer
Jet Shear Mixer

Product Description

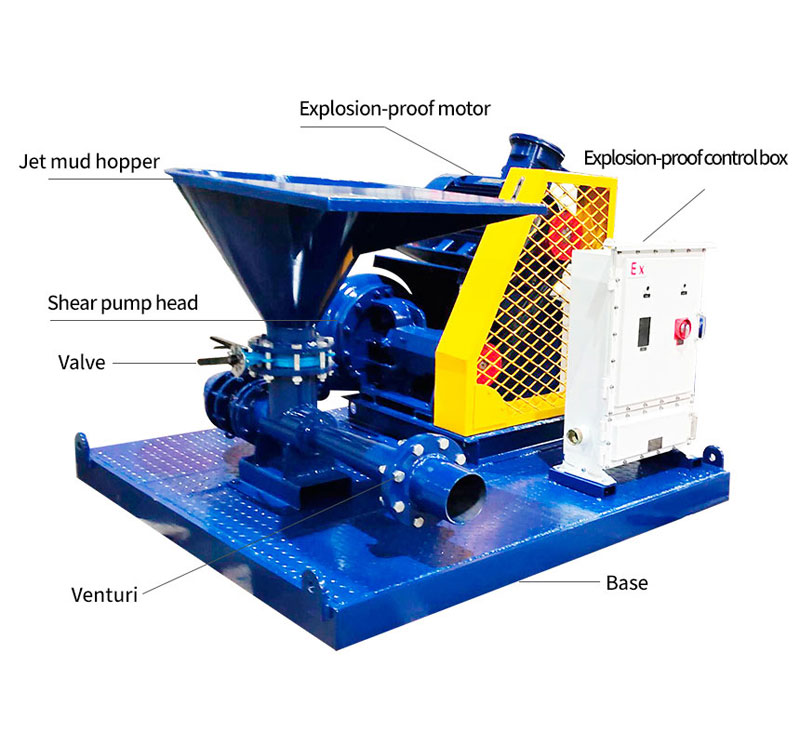

The jet shear mixer (shearing mixer) is composed of a shearing pump and a jet mixing funnel connected by a manifold valve and installed on a base.

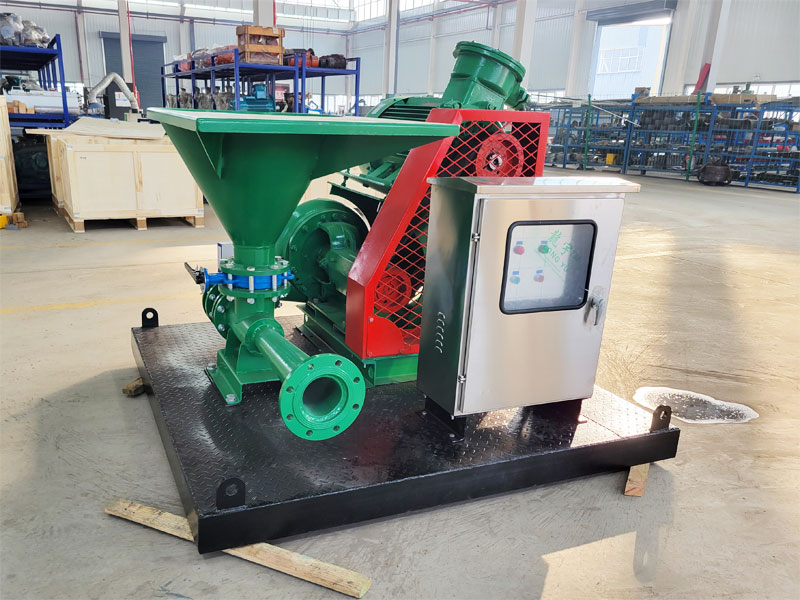

jet shear mixer

Jet Shear Mixer Parameters

Model HHQ125-J

Supporting shear pump HJB6*5-37

Capacity 105m3/h

Inlet diameter 150mm

Outlet diameter 125mm

Nozzle diameter 28mm

Dimension 2200*1700*1200mm

Weight 1350kg

jet shear mixer

jet shear mixer
