Product Description
HL Petroleum manufactures HHQ series jet mixer. It is a type of equipment used in conjunction with the drilling fluids solids control system, which can meet the Aggravation and preparation of drilling fluid in the 1000m to 7000m mud system.
Jet mixer is one of the important mud handling equipment. It is an efficient and reliable professional equipment for mixing, weighting and configuring mud. It is widely used in oil drilling, mining, construction engineering fields. It aims to evenly mix materials of different components to meet the specific requirements of mud performance for various engineering.
The mixing device is used to prepare or increase the total amount of drilling fluid, adjust the density, viscosity, water loss, etc. When the drilling fluid materials (bentonite, barite powder, etc.) and related chemical additives (polymers, etc.) are directly put into mud tanks, the materials and additives might be precipitated or agglomerated in large quantities, affecting the drilling efficiency and cost. The use of the jet mixer will solve this problem.

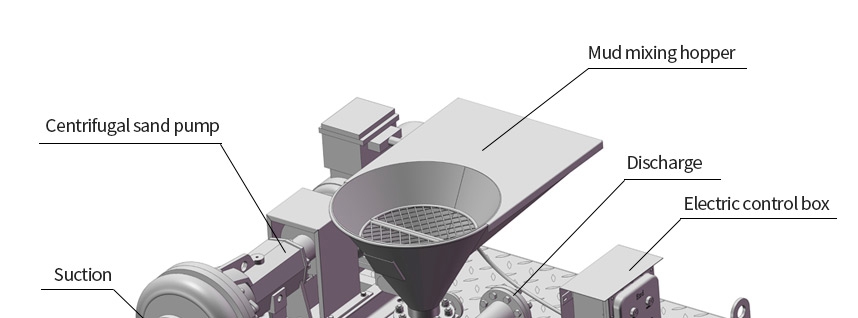

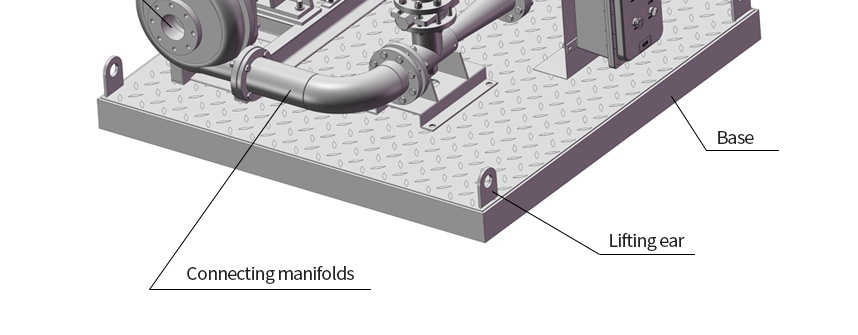

The Classic structure
TDS
Technical Parameters
Model | HHQ-80 | HHQ-100 | HHQ-125 | HHQ-150 |
Capacity | 80m³/h | 120m³/h | 180m³/h | 240m³/h |
Motor Power | 15KW | 30KW | 45KW | 55KW |
Inlet Diameter | 100mm | 125mm | 150mm | 200mm |
Output Diameter | 80mm | 100mm | 125mm | 150mm |
Nozzle Diameter | 25mm | 28mm | 32mm | 38mm |
Dimension | 1800×1600×1000mm | 2000×1650×1100mm | 2200×1700×1200mm | 2200×1700×1200mm |
Weight | 700kg | 1100kg | 1200kg | 1300kg |
The above are several models of jet mixers that we often produce for clients. In addition, if you have requirements for the size and motor power of the centrifugal pump, or the processing capacity of the jet mixing hopper, please let us know. HL Petroleum is an OEM manufacturer of jet mixing device,can produces as your demands.>>Send an Enquiry sales@hlshiyou.com<<

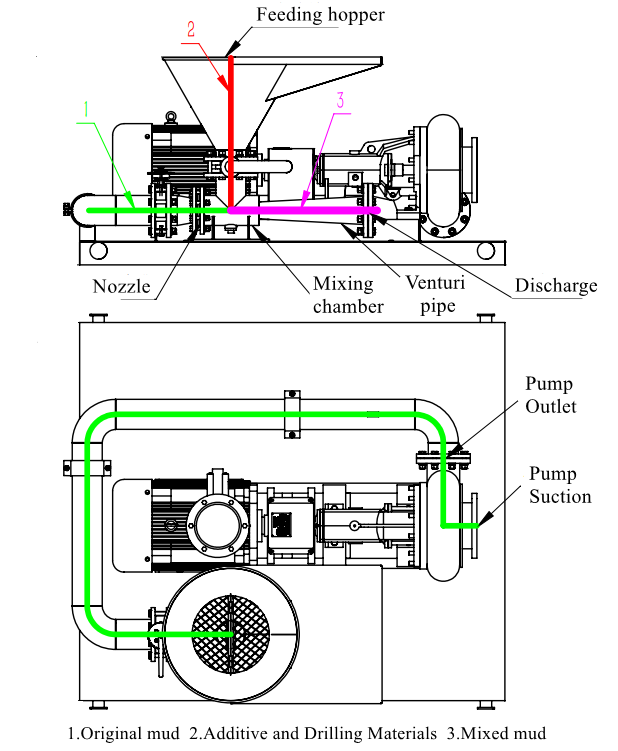

Working Principle
HHQ jet mixer uses the working principle of jet, the high-pressure power fluid through the nozzle high-speed spray, forming a local low-pressure area, sucking the surrounding sucked materials into the mixing chamber; In the mixing chamber, the high-speed flowing power fluid and the sucked materials collide and shear violently, achieving sufficient energy exchange and material mixing; Then the mixed fluid is discharged through the venturi tube to achieve the effect of uniformly mixing the mud.
Delivered Cases
This is a set of drilling fluids solid control system for ZJ70 drilling rig designed and produced for client. The mud handling equipment and mud tanks all are designed and manufactured by HL Petroleum. As shown in the figure, the jet mixer in the lower left corner of the picture is mainly used to configure and replenish mud, which plays an important role in stabilizing the performance of drilling fluid, saving drilling costs and improving drilling efficiency.>>Send an Enquiry sales@hlshiyou.com<<
Why work with HL Petroleum?
HL Petroleum is professional in drilling fluids solids control equipment production, which is a high-tech manufacturer in China.It is a one-stop provider of solids control equipment and solutions. The HL quality inspection team strictly inspects each component, and after the equipment is completed, debugs the entire solids control system until the equipment can work normally. The control has also passed the product quality certification of Xi'an Bureau of Quality and Technical Supervision. It can specifically design and match different drilling rigs and solid control equipment for horizontal directional drilling rigs according to the actual needs of customers and different working conditions. It can make the entire mud purification system become a a unified whole. And provide regular maintenance, system modification, system installation and other related services to minimize drilling costs and improve your economic benefits.
