Jet Hopper

The jet hopper is a type of mixing funnels, which is used to add drilling fluid materials such as bentonite and barite powder and related chemical additives such as polymers. HL Petroleum is a leading OEM factory of mud mixing jet hoppers in China.
Availability:
Quantity:
Jet Hopper
Jet Hopper
Jet Hopper
Jet Hopper

Product Description

The jet hopper is a type of mixing funnels, which is used to add drilling fluid materials such as bentonite and barite powder and related chemical additives such as polymers.HL Petroleum manufactures HLD series mud hoppers for clients worldwide.HLD150 is the most widely model, with mixing capacity 240m³/h.

Work Principle

According to the jet principle. The hopper is also used for medium pressure operation.

Hopper Structure

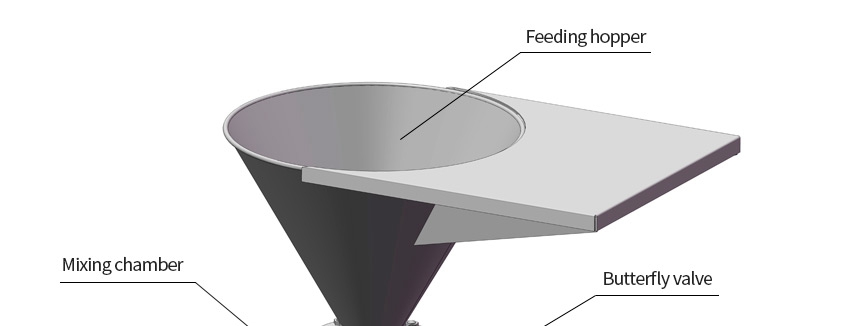

The jet hopper mainly consists of a feeding hopper, a butterfly valve, a venturi pipe, a mixing chamber and a nozzle.

HL Petroleum jet hopper pics



TDS

Technical Parameters

Model

HLD150

Capacity

240m³/h

Working pressure

0.32~0.42MPa

Hopper diameter

700mm

Inlet diameter

DN150

Outlet diameter

DN150

Dimension

1056x720x1032mm

Weight

145KG

OEM Service

HL Petroleum is a leading OEM factory of mud hoppers. We customize the size, color, and mixing capacity,etc based on your demands.

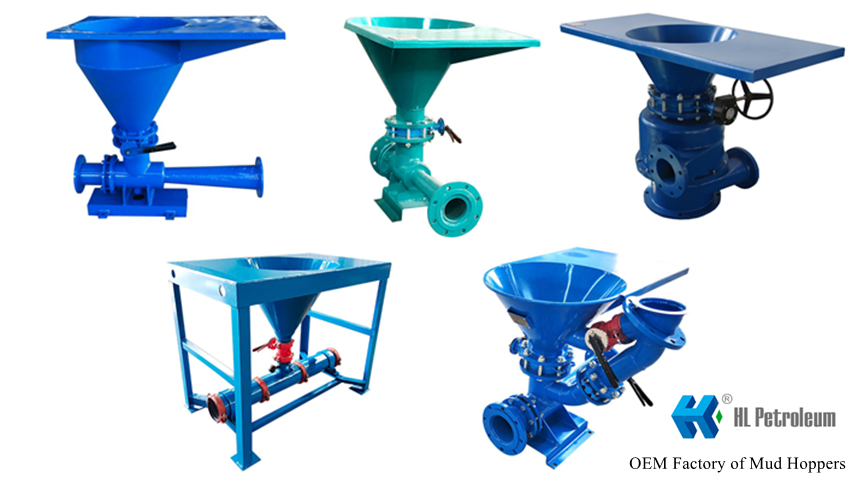

Here are some cases of the mud mixing hoppers what we produce for clients.>>Send an Enquiry sales@hlshiyou.com<<

Operation Manual

Operation of jet mixing hopper

Installation>>Get operation manual of jet hopper via sales@hlshiyou.com<<

A. After the jet funnel finish mixing, the pressure loss is very large. In order to make the drilling fluid mixed by the jet funnel be able to be directly discharged into the mud tank, the funnel is usually installed on the top of the mud tanks (i.e. high-position installation), and the mixed drilling fluid is directly discharged into the mud tank without climbing.

Once the jet funnel is installed at a high position, it is necessary to design a hoist or cantilever crane to lift the drilling fluid additives to the top of the mud tank.

B. When the jet funnel is installed at a low position, a reasonable climbing angle should be designed, and the outlet should be directly connected to the mud tank to prevent the drilling fluid from overflowing from the funnel.

The jet funnel is usually directly driven by an electric centrifugal pump to mix the mud. When the mixing effect is not good, it is necessary to adjust the distance between the jet funnel nozzle and the outlet end face to achieve the best mixing effect.

Use

When working, close the butterfly valve at the bottom of the funnel. Start the centrifugal pump circulation, after the pump circulation is normal, slowly open the butterfly valve, and observe whether the jet water column is normal. If there is no overflow, then you can add drilling fluid materials from the funnel.

When adding materials, be careful not to remove the filter screen to prevent foreign objects such as packaging bags or gloves from falling into the funnel and clogging the funnel.

After the addition is completed, the centrifugal pump should circulate for a few more minutes to clean all the additives, then close the butterfly valve at the bottom of the funnel, stop the pump.


Maintenance of the jet venturi mud hopper

After each use, the solid materials inside the hopper mixing chamber and the butterfly valve seal must be rinsed clean to prevent the funnel from being blocked and the butterfly valve from being sealed tightly.

Close the butterfly valve when finishing the cleaning.
