Helical Gear Flange Connection Mud Agitator

HL mud agitator design features:
1. Helical gear reducer, high transmission efficiency
2. High-strength material, long service life
3. Compact structure, good meshing performance
4. Explosion-proof motor, safe and reliable
5. Single or double blades can be customized according to customer needs
Availability:
Quantity:
Helical Gear Flange Connection Mud Agitator
Helical Gear Flange Connection Mud Agitator
Helical Gear Flange Connection Mud Agitator
Helical Gear Flange Connection Mud Agitator
Helical Gear Flange Connection Mud Agitator
Helical Gear Flange Connection Mud Agitator

Product Description

The helical gear flange connection mud agitator is a supporting equipment for the drilling fluid tank solid control system. It is mainly used for mixing and stirring drilling fluid. Through the stirring of the blade, the solid phase particles of the drilling fluid are suspended to prevent the solid phase particles of the drilling fluid from settling in its tank circulation system, so that the performance of the circulating drilling fluid is stable and evenly mixed. The HJBX series mud agitator consists of an explosion-proof motor, a helical gear reducer, a base and a stirring shaft. It is widely used in major oil fields at home and abroad due to its compact structure, good meshing performance, large torque, and high transmission efficiency. >>Send an Enquiry sales@hlsolidscontrol.com<<

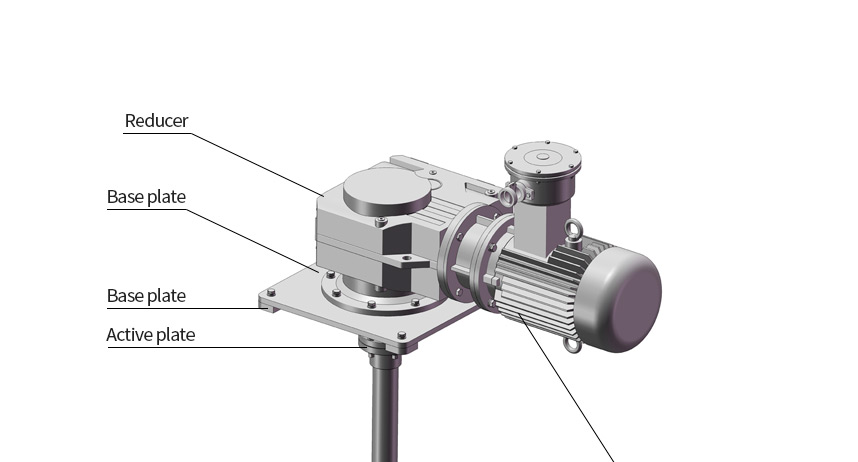

斜齿轮搅拌器_01斜齿轮搅拌器_02

TDS

Technical Parameters of HJBX Helical Gear Mud Agitator >>Send an Enquiry sales@hlsolidscontrol.com<<

Model

HJB-5.5K

HJB-7.5K

HJB-11K

HJB-15K

HJB-18.5K

HJB-22K

Motor power

5.5KW

7.5KW

11KW

15KW

18.5KW

22KW

Speed ratio

25:1

25:1

25:1

25:1

25:1

25:1

Motor speed

1440rpm

1440rpm

1460rpm

1460rpm

1470rpm

1470rpm

Output torque

827N.m

1124N.m

1684N.m

2298N.m

2798N.m

3328N.m

Impeller speed

57rpm

57rpm

58rpm

58rpm

58rpm

58rpm

 Impeller diameter

800mm

850mm

900mm

1000mm

1200mm

1400mm

Weight

295kg

400kg

462kg

560kg

785kg

815kg

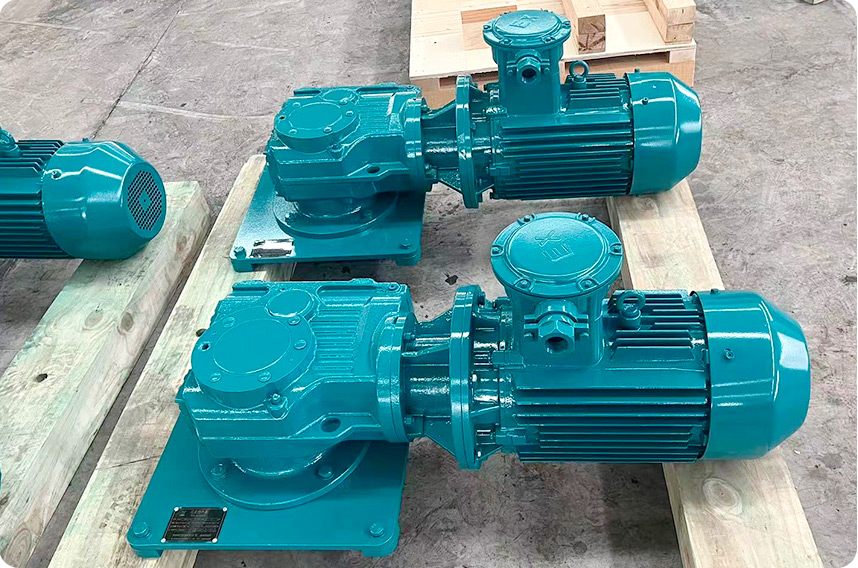

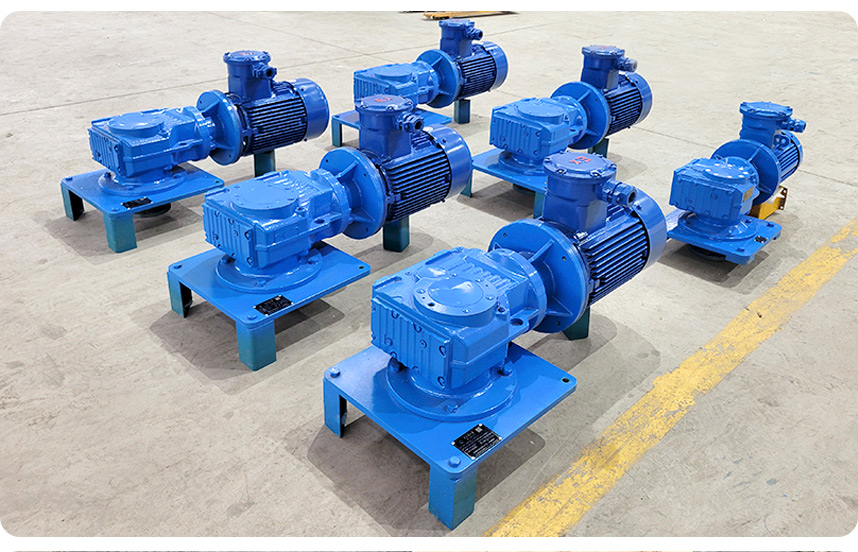

斜齿轮搅拌器_03斜齿轮搅拌器_04

HJBX Helical Gear Mud Agitator Features

1. Helical gear reducer, stable operation, large load capacity

2. Good wear resistance, exquisite appearance

3. Compact structure, easy installation

4. Gear reducer, high transmission efficiency

Processing Pictures

斜齿轮搅拌器_05

HL HJBX series mud agitator has low energy consumption, low noise and high cost performance. The impeller of the agitator is divided into two types: detachable and non-detachable. The impeller has single impeller and multi-impeller for users to choose from. It can be customized according to the specific requirements of customers to meet the special needs of different customers.

斜齿轮搅拌器_06

HL Petroleum provides various types of mud agitators, including horizontal mud agitators, helical gear mud agitators, flange-connected mud agitators, turbine worm mud agitators, vertical mud agitators, etc., suitable for various types of oil and gas drilling and industrial applications.
