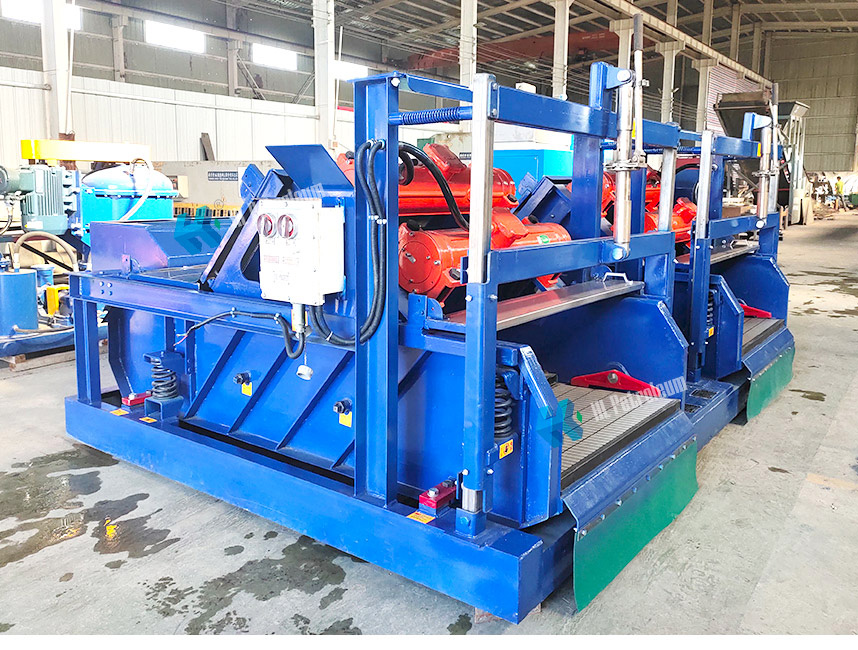

Overview of linear shale shaker
Linear mud shale shaker is a first-stage equipment for solid-liquid separation of drilling fluid. It is suitable for drilling fluid solid control system of oil and gas drilling. Linear movement along a certain direction achieves the purpose of screening and discharging cuttings particles in drilling fluid.
The linear shale shaker vibrating screen gets its name because the screen box moves in a straight line when it is working. The vibrator of the linear mud shaker consists of two eccentrics of equal mass that rotate synchronously in opposite directions. Compared with the circular motion mud shaker, it has the following characteristics:
* Since the motion track of the screen box is straight line, the drill cuttings move regularly on the screen surface and the chip removal is smooth.
* Since the screen surface is placed horizontally, the overall height of the linear motion shale shaker is reduced
* Since the screen surface moves in straight line, the acceleration and force on the screen are relatively uniform and the direction remains constant. Therefore, ultra-fine screens can be used on this type shakers, which is very important for drilling solids control.
* Compared with the circular vibrating screen, the drilling fluid processing capacity of the linear shaker is 20%~30% greater under the same conditions.
HL Petroleum has developed a variety of linear shale shakers based on the needs of the drilling site, with shaker screen api mesh size ranging from API 40 to API 325.
Features of linear shale shaker
1. High efficiency of linear vibration trajectory.
2. Any combination of double, triple and quadruple.
3. The angle of the screen box can be adjusted to prevent the slurry from running out.
4. Hook edge plate screen, economical and affordable.
5. Screen box inclination adjustment device to prevent pulp running.
Technical parameters of linear shale shaker
Model | HZS703 | HZS803 | HZS604 | HZS605 |
Vibration Mode | Linear Motion | Linear Motion | Linear Motion | Linear Motion |
Capacity | 30L/S | 35L/S | 40L/S | 45L/S |
Screen Area | 2.2㎡ | 2.7㎡ | 2.7㎡ | 3.4㎡ |
Screen Qty & Size | 3×1050×700mm | 3×1080×830mm | 4×1165×585mm | 5×1165×585mm |
Motor Power | 2×1.5kW | 2×1.8kW | 2×2.2kW | 2×2.5kW |
Deck Angle Range | -1°～3° | -1°～3° | -1°～3° | -1°～3° |
Dimension: L×W×H | 2850×1590×1550 | 3150×1800×1630 | 2650×1700×1750 | 2850×1750×1650mm |
Weight | 1680kg | 1800kg | 1950kg | 2350kg |
HL Petroleum produces various types of drilling fluid shale shakers.
Learn details via sales@hlshiyou.com / whatsapp +86 17742483609.
