Product Description
The drilling fluid mixing system produced by HL Petroleum is mainly used to configure and mix drilling mud. The principle of the mud mixing system is the combination of jet mixer and agitator mixer. For large-scale projects related to geological drilling, oil and gas drilling, trenchless pipeline construction,etc, HL Petroleum has designed the HMM series mud mixing system, which is characterized by sufficient stirring, fast operation, large mixing volume, and the ability to mix and store different types of mud, fully meeting the requirements of complex geological conditions for mud.
The Features of HL Petroleum HMM series mud mixing system:
* The size and structure of mud mixing tanks are the same.
* Fast mud mixing speed, and the mixing volume is large.
* The mud tank adopts a skid-mounted corrugated structure with high strength and durability.
* According to the application environment, explosion-proof electric control boxes and lighting can be provided.
* Customized services are provided. The tank size, pipeline connection, tank structure, related tank accessories, etc. are designed according to your needs.
* Sandblasting process, spraying corrosion-resistant paint.
The drilling fluid mixing system produced by HL Petroleum mainly consists of several mud tanks with mud agitators. The tanks are connected in parallel through rubber hoses and each can be used separately through valves. The jet mud mixing device can be connected to one of the tanks, or it can suck mud from any tank and discharge the mixing mud into any tank. Each tank is equipped with an electric control cabinet, which can realize the separate use and storage of different types of mud in each tank. For projects with complex geological conditions that require different types of mud, the HMM series mud mixing system can realize rapid conversion of mud.

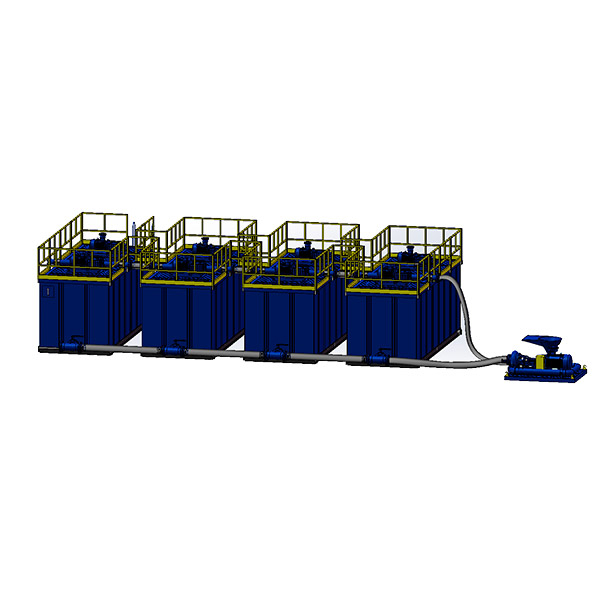

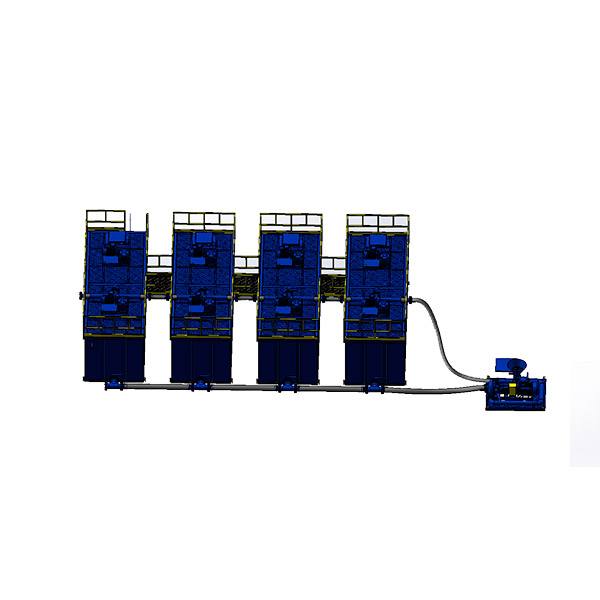

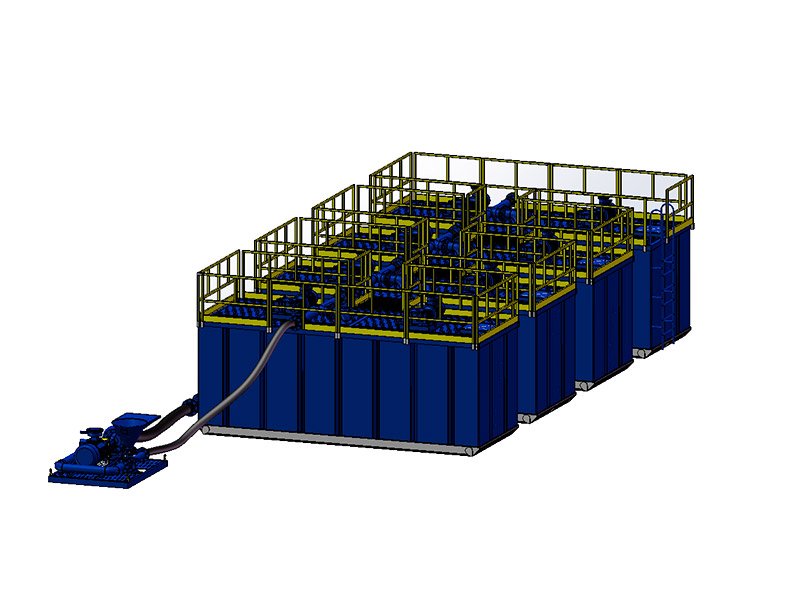

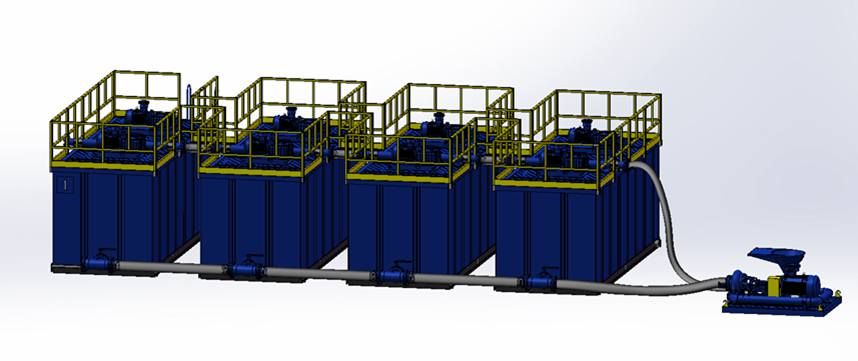

Here is a set of 100m³ mud mixing system HMM100 designed by HL Petroleum for an oilfield client.
The system includes 2 parts,
1. Jet mixer. It includes 2 jet mixing devices. Each mud mixing device is composed of a high-efficiency 37KW centrifugal sand pump and a 6-inch jet hopper, the processing capacity is 120m³/h. The drilling fluid additive and the mud to be treated are mixed firstly by jet principle.
2. 100m³ mud mixing tank. This part consists of 4 standard skid-mounted corrugated structure tanks, each equipped with 2sets of 7.5KW double-layer mud agitators, and explosion-proof lighting fixtures on the top. The double-layer impeller of the agitator and mixer is used to fully mix the mud treated by the jet mixer. The 4 tanks are fixed in parallel with rubber hoses, and each tank is equipped with an electric control box, which can achieve separate mixing and storage of different types of mud in each tank.
This mud mixing system had won satisfactory praise from the client.
Details of the HMM100 customized mud mixing system

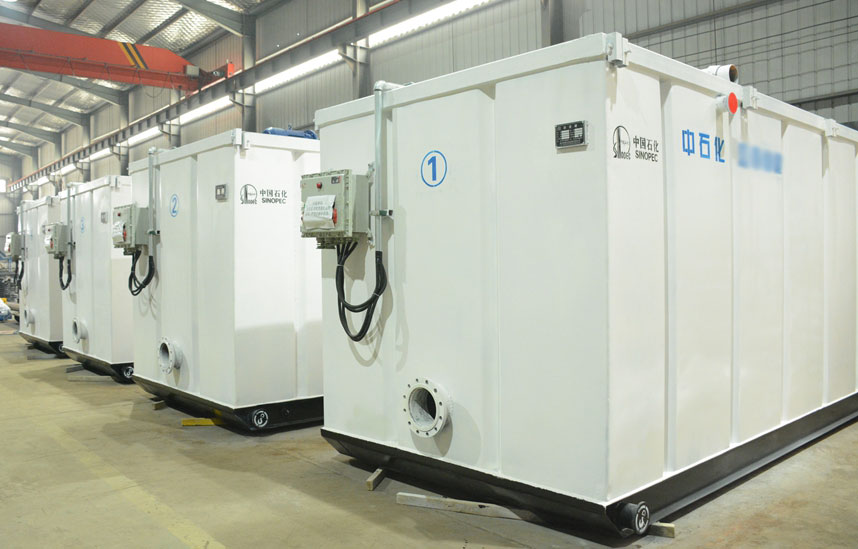

The 100m³ mud mixing system was on the delivery to client use site.
HL Petroleum specializes in the development and production of mud handling equipment and mud systems. We tailor-make high-quality mud mixing systems for you. Turn to us for solutions, sales@hlshiyou.com
