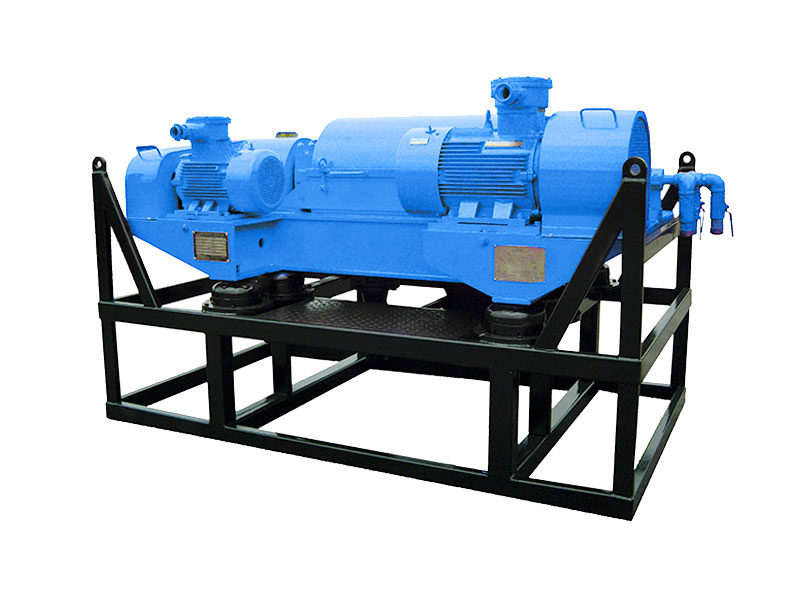

HL Petroleum manufactures LW series decanter centrifuge for separation of detrital material of drilling muds is widely used in solid control system for drilling mud to separate the solids phase of mud, remove harmful fine drill solids such as debris, etc. in the mud fluid, or recover weighting materials such as barite etc. so as to reduce the cost of mud fluid.
Drilling fluid centrifuge is one of the important equipment for drilling solid control system. It is generally installed at the last stage of the drilling mud system, to treat unweighted mud to remove harmful solids above 2μm; it can remove excess colloids in drilling fluid, control the mud viscosity, and recover barite when treating weighted drilling fluid; it can treat the underflow of hydrocyclone desander and desilter, recover liquid phase, and reduce the waste of fresh water or oil. In addition, centrifuge is also an ideal equipment for drilling waste management and environmental protection.

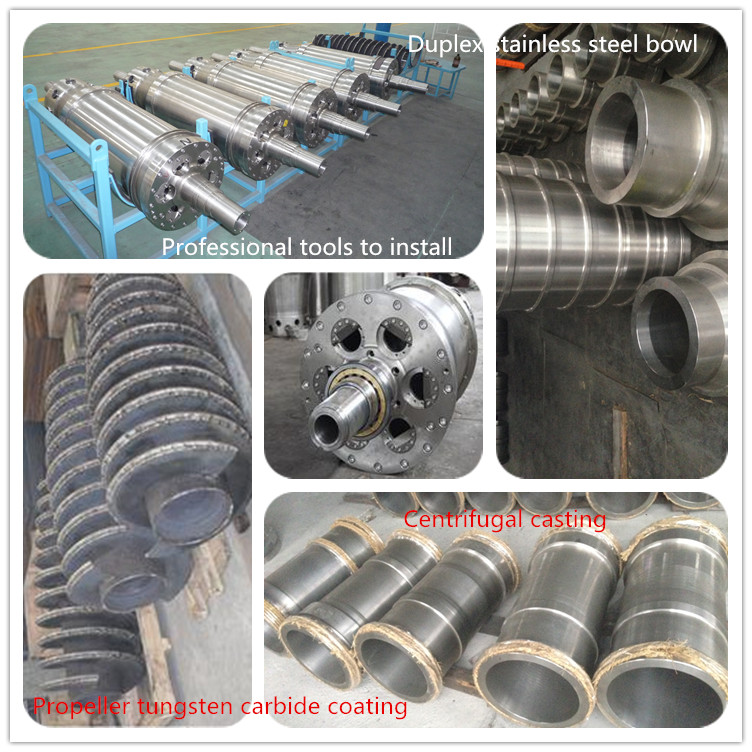

LW mud centrifuge Details
The technical parameters of LW series decanter centrifuge
Item of parameters | LW355×1257-N | LW450×1000-N | LW630×1260-N |
Drum diameter (mm) | 355 | 450 | 630 |
Drum length (mm) | 1257 | 1000 | 1260 |
Drum speed (r/min) | 2800 | 2500 | 2200 |
Separating factors | 1780～1550 | 815～1295 | 740～1140 |
Max. capacity (m3/h) | 40 | 50 | 60 |
Main motor | YB200L-4 | YB225S-4 | YB2-250M-4 |
Motor power (kW) | 30 | 37 | 55 |
Auxiliary motor | YB160M-6 | YB160M-6 | YB2-180L-6 |
Motor power (kW) | 7.5 | 7.5 | 15 |
Dimension (mm) | 3000×1476×1620 | 2750×1580×1780 | 3614×1873×1792 |
Weight (kg) | 3300 | 3500 | 5000 |
HL Petroleum LW decanter centrifuge is an ideal solid control centrifuge in mud cleaning system.
HL Petroleum manufactures LW series decanter centrifuge for separation of detrital material of drilling muds is widely used in solid control system for drilling mud to separate the solids phase of mud, remove harmful fine drill solids such as debris, etc. in the mud fluid, or recover weighting materials such as barite etc. so as to reduce the cost of mud fluid.
Drilling fluid centrifuge is one of the important equipment for drilling solid control system. It is generally installed at the last stage of the drilling mud system, to treat unweighted mud to remove harmful solids above 2μm; it can remove excess colloids in drilling fluid, control the mud viscosity, and recover barite when treating weighted drilling fluid; it can treat the underflow of hydrocyclone desander and desilter, recover liquid phase, and reduce the waste of fresh water or oil. In addition, centrifuge is also an ideal equipment for drilling waste management and environmental protection.
LW mud centrifuge Details
The technical parameters of LW series decanter centrifuge
Item of parameters | LW355×1257-N | LW450×1000-N | LW630×1260-N |
Drum diameter (mm) | 355 | 450 | 630 |
Drum length (mm) | 1257 | 1000 | 1260 |
Drum speed (r/min) | 2800 | 2500 | 2200 |
Separating factors | 1780～1550 | 815～1295 | 740～1140 |
Max. capacity (m3/h) | 40 | 50 | 60 |
Main motor | YB200L-4 | YB225S-4 | YB2-250M-4 |
Motor power (kW) | 30 | 37 | 55 |
Auxiliary motor | YB160M-6 | YB160M-6 | YB2-180L-6 |
Motor power (kW) | 7.5 | 7.5 | 15 |
Dimension (mm) | 3000×1476×1620 | 2750×1580×1780 | 3614×1873×1792 |
Weight (kg) | 3300 | 3500 | 5000 |
HL Petroleum LW decanter centrifuge is an ideal solid control centrifuge in mud cleaning system.
